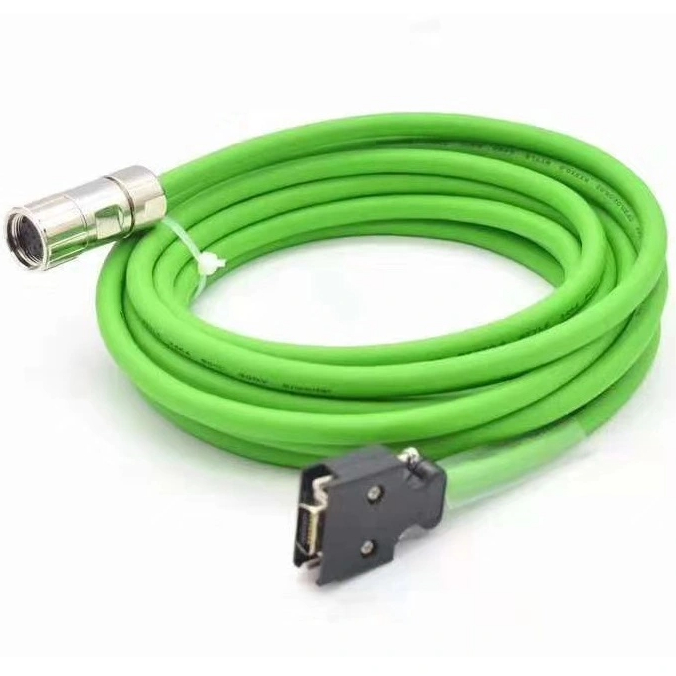

Inconntec V90 Servo Encoder Cable for (SIEMENS)

Connector-1 :

M23 8 core Female Connector

Connector-2 :

SCSI MDR-14P Male Connector Pitch=1.27mm Screw Type Black

Wire SPEC :

UL20276 24AWG*4P +AL + Braid PVC Jacket OD=6.5mm

Length :

0.5m, 1.0m, 2m, 3m, 5m, 8m, 10m （Customizable）

Color :

Green （Customizable）

Electrical Characteristics:

a)  Current rating: 1.0A max

b)  Voltage rating: 30VAC

c)  Differential impedance: 90 ± 15 ohm

d)  Insulation Resistance: 1000MΩ min.

e)  Temperature: -45°C  ~ +85°C

Application:

SIEMENS Servo Motor

Environmental standards:

RoHS Compliant
