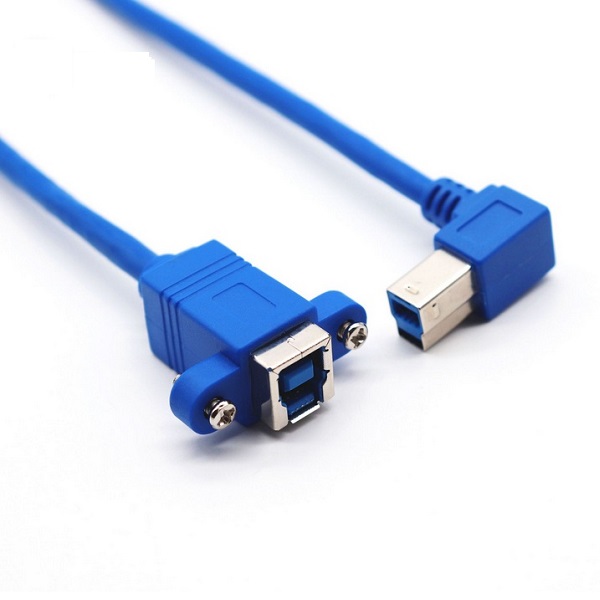

Inconntec USB 3.0 BM L Type to BF Cable for For Panel Mount
Part No: A09-1061XXX-01
Connector-1 :
USB 3.0 B Male Connector Au G/F, Color: Blue
Connector-2 :
USB 3.0 B Female Connector Au G/F, Color: Blue
Wire SPEC :
UL20276(USB3.0) (28AWG*1P+AE)x2C+24AWGx2C+28AWGx1P +AEB PVC Jacket OD=5.5mm
Length :
0.5m, 1.0m, 2m, 3m, 5m （Customizable）
Color :
Black/Blue/White （Customizable）
Electrical Characteristics:
a) Current rating: 1.8A max
b) Voltage rating: 30VAC, DC 300V 0.01sec.
c) Differential impedance: 90 ± 15 ohm
d)Insulation Resistance:1M OHMS min.
e) Temperature:-20°C~ +85°C
Application:
Computer, Electronics
Environmental standards:
RoHS Compliant
