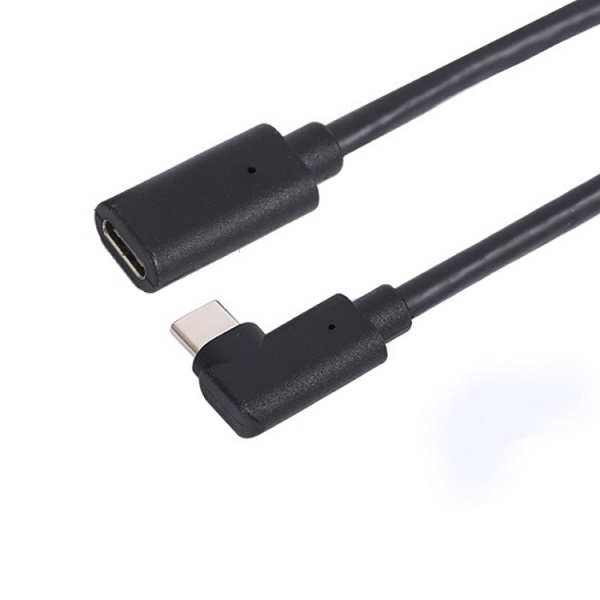

Inconntec Type-C Male R/A to Female Cable
Part No: LKU31MF0-X
Connector-1 :
USB Type-C Male Connector Au G/F Color: Black
Connector-2 :
USB Type-C Female Connector Au G/F Color: Black
Wire SPEC :
UL2725 (32AWG*1P+DAM)x4C+32AWGx4C+32AWGx1P+22AWG*2C+AEB PVC Jacket OD=4.5mm
Length :
0.15m, 0.5m, 1.0m, 2m,（Customizable）
Color :
Black/White（Customizable）
Electrical Characteristics:
a) Current rating: 3A max
b) Voltage rating: 30VAC, DC 300V 0.01sec.
c) Differential impedance: 90 ± 15 ohm
d) Insulation Resistance: 1M OHMS min.
e) Temperature: -20°C~ +85°C
Application:
Computer, Electronics
Environmental standards:
RoHS Compliant
