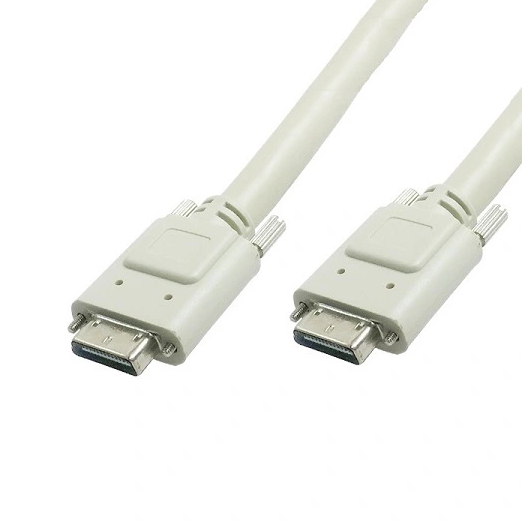

Inconntec SDR 26Pin Camera Link Cable

Part No: WAK-M001-XXA
Connector-1 :	SCSI SDR-26Pin Pitch=0.8mm Solder Type Connector
Connector-2 :	SCSI SDR-26Pin Pitch=0.8mm Solder Type Connector
Wire SPEC :	UL20276 (28AWG+AL)11P +24AWG2C+D*2C+AEB PVC Jacket OD=9.0mm Color: Black
Length :	0.5m, 1.0m, 2m, 3m, 5m （Customizable）
Color :	Black （Customizable）
Electrical Characteristics:	a) Current rating: 0.5A max
	b) Voltage rating: 30VAC
	c) Differential impedance:90 ± 10 ohm
	d) Insulation Resistance: 1000MΩ min.
	e) Temperature:-20°C~ +85°C
Application:	Industrial Camera
Environmental standards:	RoHS Compliant
