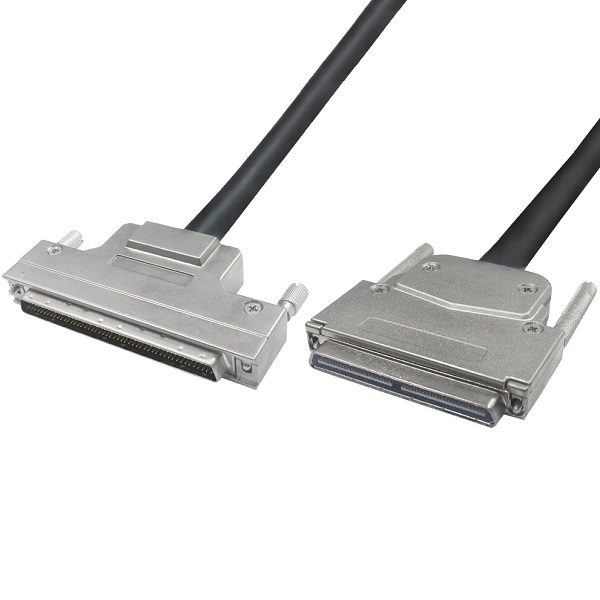

Inconntec SCSI-II 100Pin to VHDCI-100P Male Cable

Connector-1 :

SCSI-II 100Pin Pitch=1.27mm Male With Zinc Metal Hood 2-56# Screw

Connector-2 :

SCSI VHDCI 100Pin Pitch=0.8mm Male With Zinc Metal Hood M2.0 Screw

Wire SPEC :

UL20276 28AWG*50P +AL.MYLAR+Drain+Braid PVC Jacket OD=11.0mm Color: Black

Length :

0.5m, 1.0m, 2m, 3m, 5m （Customizable）

Color :

Black  （Customizable）

Electrical Characteristics:

a)  Current rating: 0.5A max

b)  Voltage rating: 30VAC

c)  Differential impedance: 100 ± 15 ohm

d)  Insulation Resistance: 1000MΩ min.

e)  Temperature: -20°C~ +85°C

Application:

Automation Equipment

Environmental standards:

RoHS Compliant
