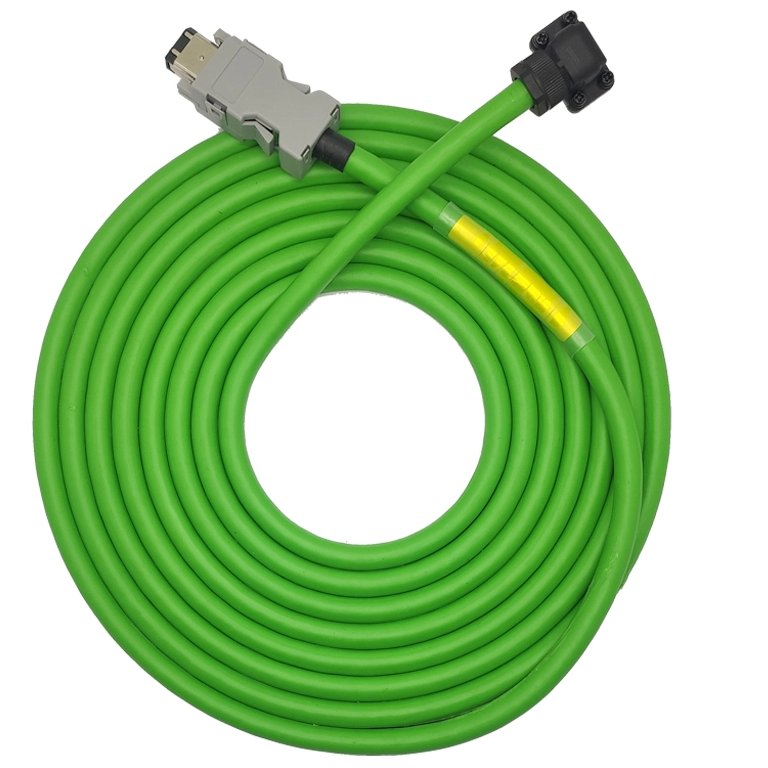

Inconntec A5 A6 Series Servo Encoder Cable for (Panasonic or Mitsubishi)
Part No:
Connector-1 :
SM-6P Female Connector
Connector-2 :
Waterproof 9P (2174053-1) Connector
Wire SPEC :
UL20276 24AWG*3P +AL + Braid PVC Jacket OD=6.0mm
Length :
0.5m, 1.0m, 2m, 3m, 5m, 8m, 10m （Customizable）
Color :
Green （Customizable）
Electrical Characteristics:
a) Current rating: 1.0A max
b) Voltage rating: 30VAC
c) Differential impedance: 90 ± 15 ohm
d) Insulation Resistance: 1000MΩ min.
e) Temperature: -45°C ~ +85°C
Application:
SIEMENS Servo Motor
Environmental standards:
RoHS Compliant
